Does any of your critical machines experience continuous high levels of vibrations?
Need to do something about it?

whats in the case

Measurements of dynamic movements are used for critical machines within industries, where large temperature differences or other disturbing factors exist. The need for dynamic measurements is indicated by a high level of vibrations. These high levels can remain even after having performed shaft alignment in cold condition.

There can be a situation where two identical machines behave differently, even though OEM recommendations have been taken into consideration, during the alignment. In order to obtain unique and exact target values, measurements in both hot and cold conditions have to be performed. Thereafter, the difference is used as machine unique target values for precision shaft alignment.

The NXA with the OL2R expansion kit helps you overcome this costly and time-consuming problem.

The OL2R fixtures, combined with the NXA system, will provide you with:

  • An express set up without using the display unit
  • A function for continuing the measurement or to save for the future
  • An express result – the machine’s individual target values

What’s in the case?

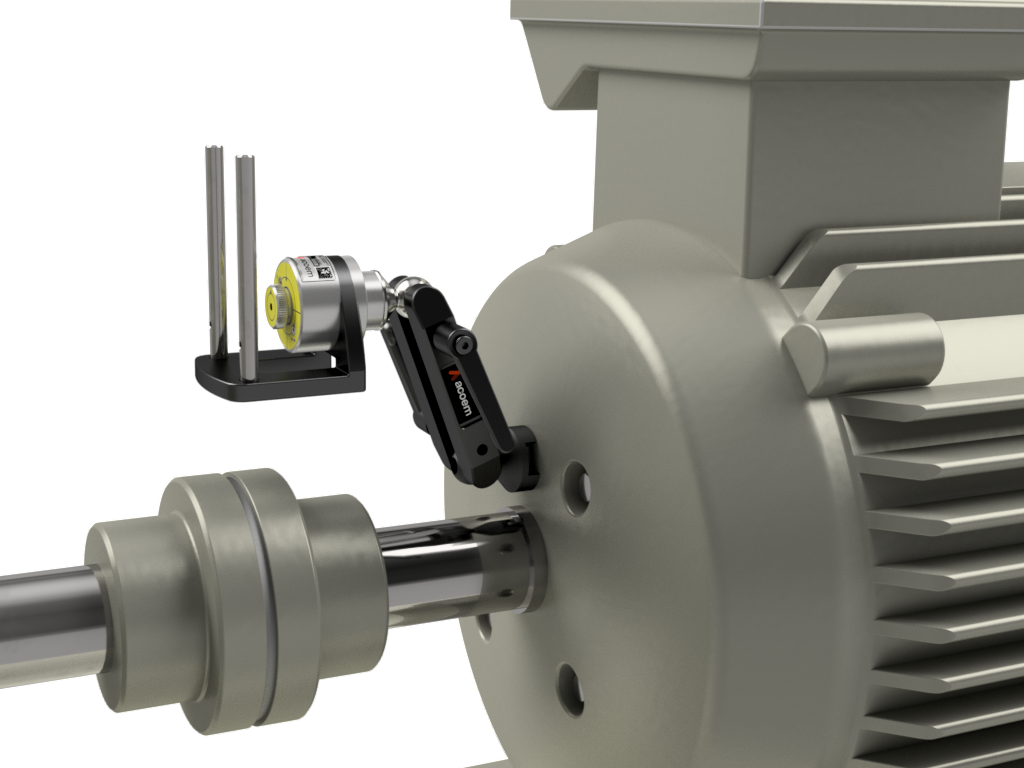

The OL2R Fixtures with case

  • 2 pcs of OL2R fixtures, available in mm or in inch
  • Allen key 5 mm or 3/16 inch
  • 2 pcs of socket cap screws M6 x 650 or UNC 1/4 x 2 inch
  • Thread tap M6 or 1/4 inch
  • Allen key 2 mm
  • Drill 5 mm
  • 4 pcs of batteries, SR44 1,5 v

Technical Specification

The ol2r fixture kit
 Weight of system (incl. case) 5,2 kg
 Weight of system (excl. case) 3,2 kg
 Dimensions of case (L x H x W) 335 x 270 x 150 mm
 Laser pointer Class 2 laser
 Material Anodized aluminum
 Operating temperature (point laser) 0°C – +50°C
 Storage temperature (point laser) -20°C – +70°C

*NOTE! Specifications are subject to change without notice.
